Professional CNC Horizontal Lathe Machine Manufacturer - PHMTOOLS
Save you a lot of labor.
  • The integral flat bed integral casting structure. Bed, bed, bed saddle, bed legs, etc. are found in resin sand casting, overall stability;
  • The appearance protection design is novel and unique, waterproof, antiboda, convenient for maintenance;
  • The follow-up manipulation box is convenient for the operator to close the knife;
  • It is equipped with a centralized lubricator to enforce automatic lubrication of ball screws and angelica joint surfaces, which can effectively improve the dynamic response characteristics of the machine and the service life of the lead rail rail;
  • The tool holder has a vertical four-station, a vertical six- station, a horizontal six station, a quick cutting frame, etc.
  • Accordling to user requirements, manual, pneumatic, hydraulic chuck manual, pneumatic, hydraulic tail seat;
  • The control system has internationally renowned brands such as GSK, Fanuc, Siemens.
Contact Us
CNC Horizontal Lathe Machine Parameter

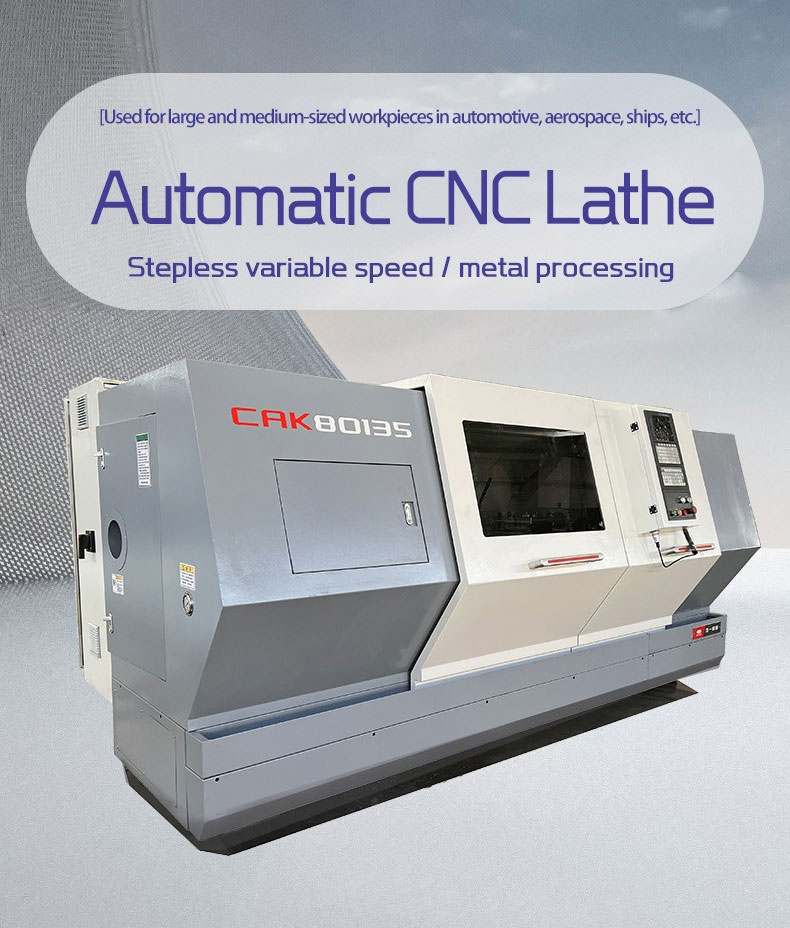

automatic-cnc-lathe
Model Unit CK6163 CK6263 CK6180 CK6280 CK6180B CK6280B
NG system GSK980TDC
Max swing over bed mm 630 800 800
Max swing over tool mm 320 520 480
Max swing over carriage mm 800 970 970
Carriage width mm 300
Maximum workpiece length mm 750/1000/1500/2000/3000/4500/5000
Maximum turning length mm 600/850/1350/1850/2850/3850/4850
Body rail width mm 550 600
Spindle end code   D11
Chuck (manual) mm Φ380(Standard)
Spindle through hole diameter mm 105
Spindle front taper hole   1:20/120
Spindle speed level   Manual 4th gear/Hydraulic 4th gear
Tailstock sleeve diameter mm 100
Tailstock sleeve stroke mm 250(Standard)
Tailstock sleeve taper hole   Morse 5
X axis motor model   130SJT-M0100
Z axis motor model   130SJT-M150B
  kw 11
X/Z axis min unit mm 0.001/0.001
X/Z axis fast move speed mm/min 6000/12000
Tool holder form   Vertical four-station or vertical six-station

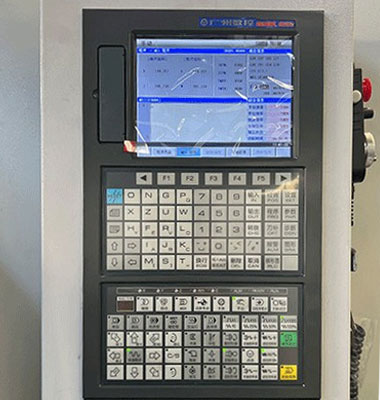

CNC-system

CNC System

The factory is standard(GSK), or it can also be selected, and the control system such as Siemens, Mitsubishi, New Wns.

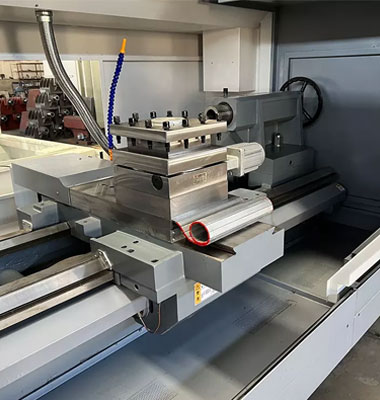

Knife-holder

Knife Holder

Four station electric tool holders, optional six-position/eight-station tool holder, fast changing speed, high positioning accuracy.

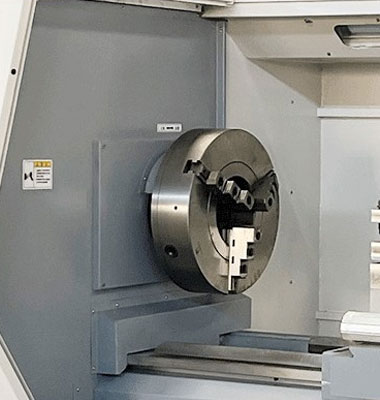

Triad-chuck

Triad Chuck

The machine tool can be equipped with three claws, four-claw, large clamping range, fast assembly speed.

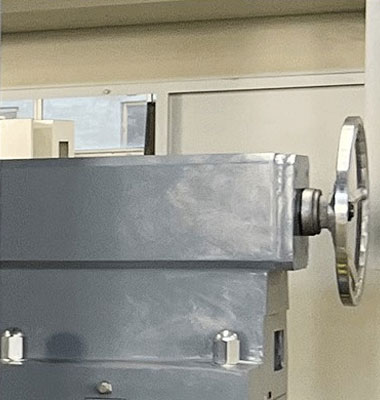

Sudoku

Sudoku

The tail seat sleeve is high frequently, and is carefully grinded and is not easy to wear.
Contact Us
CNC Horizontal Lathe Machine Application
  • Hardware-processing
    Hardware Processing
  • Mold-processing
    Mold Processing
  • Ship-industry
    Ship Industry
  • Bearing-Processing
    Bearing Processing
  • Gear-Processing
    Gear Processing
  • Automobile-industry
    Automobile Industry
