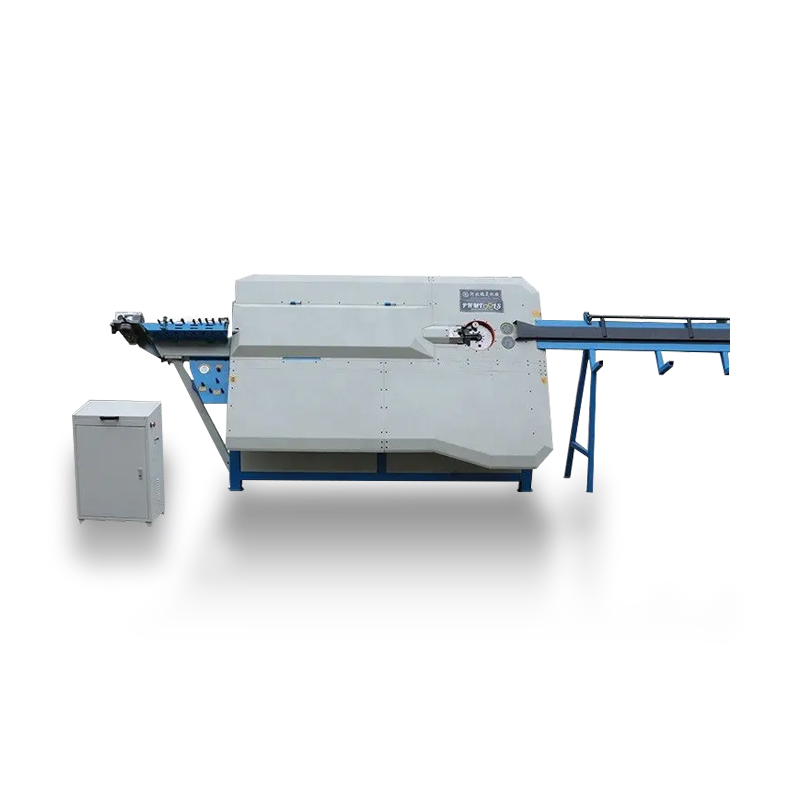

2021 Automatic Stirrup Bending Machine Develop No.6 It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3560*1080*2030mm
  • Develop No.6

  • Penghao

  • 14mm

  • 10mm

  • ±180°

  • 75m/min

  • 1000°/sec

  • ±1mm

  • 5kw/h

  • 1500mm

  • 2000

  • 30.5kw

  • 500 types

  • -5℃~40℃

  • 2450kg

  • 3560*1080*2030mm

  • yellow or customized

  • 50mm

Availability:


Product Introduction


Stirrup Bending Machine in Sri Lanka is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.




Technical Specifications



AUTOMAITC   WIRE FEEDING SYSTEM (PLC)/MECHANICAL CUTTING
SINGLE WIRE BENDING (MM) 5-16 ROUND BAR 5-16 REBAR
DOUBLE WIRE BENDING (MM) 5-12 ROUND BAR 5-12 REBAR
MAX BENDING ANGLE (° ) ±180
MAX TRACTION SPEED(M/MIN) 75
MAX BENDING SPEED(° /S) 1000
ANGLE PRECISION(° ) ±1
CUT LENGTH PRECISION(MM) ±1
AVERAGE POWER(KW/H) 12
TOTAL POWER(KW) 52.5(include compressor )
DIMENSION(MM)(L*W*H) 4000* 2000*2200
WEIGHT(KG) 3000
PRODUCTIVITY(DOUBLE WIRE)   (PCS/H) 2200-2400(FOR EXAMPLE 200* 200MM SQUARE)
BENDING DIRECTION DOUBLE DIRECTION
ADDITIONAL FUNCTIONS Two end bend
CERTIFICATION CE/IS09001:2008





Product Details


1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.




Product Details


2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details

2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details
2021 Develop No.6 Automatic Stirrup Bending Machine-Product Details

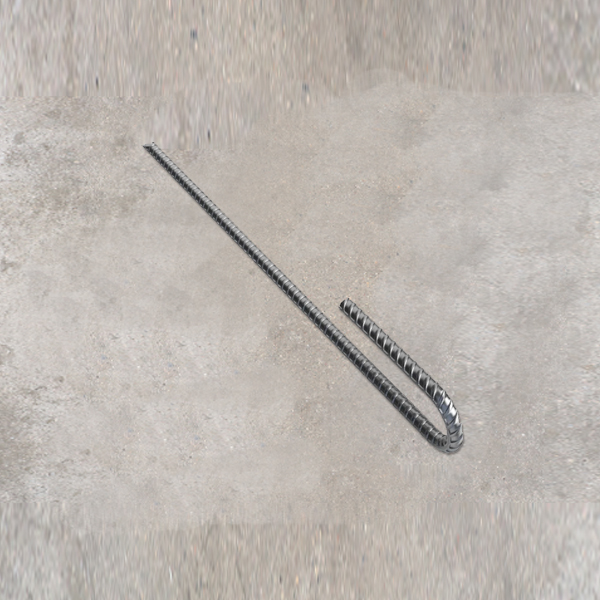

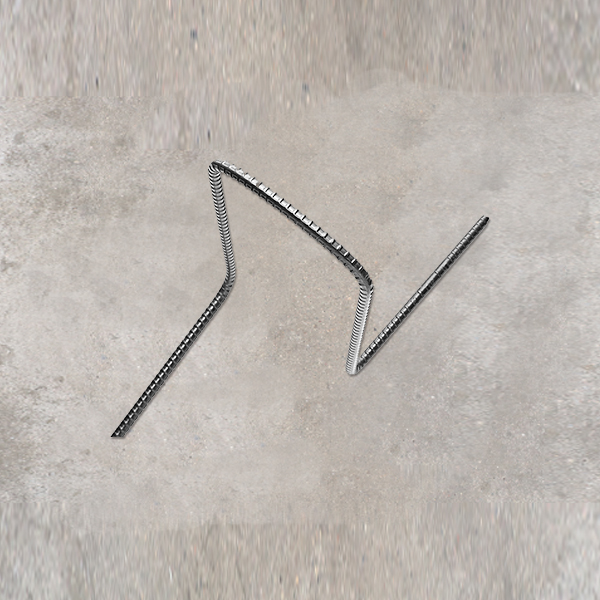

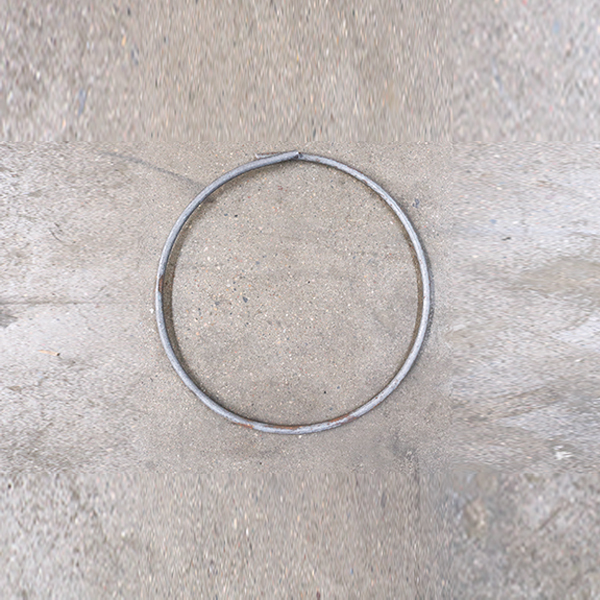

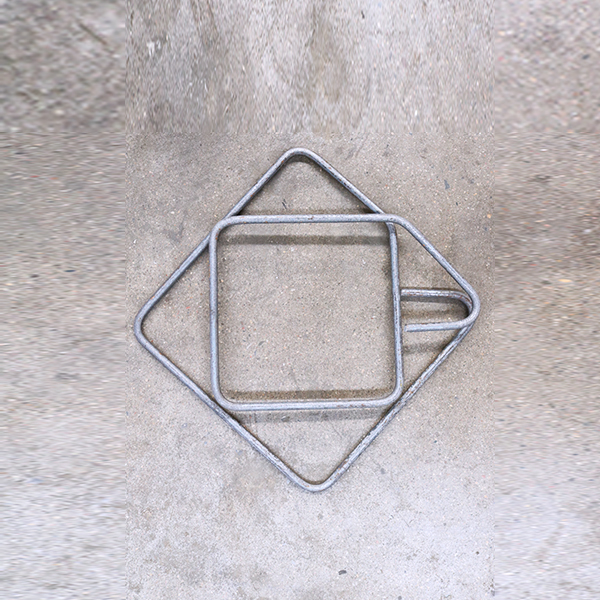

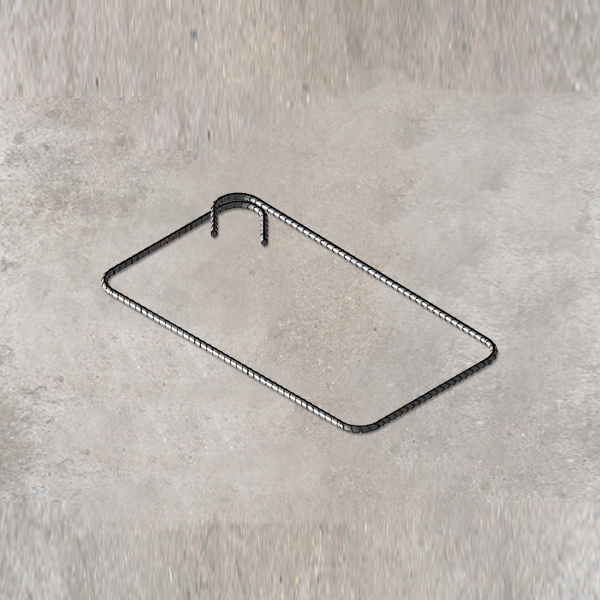

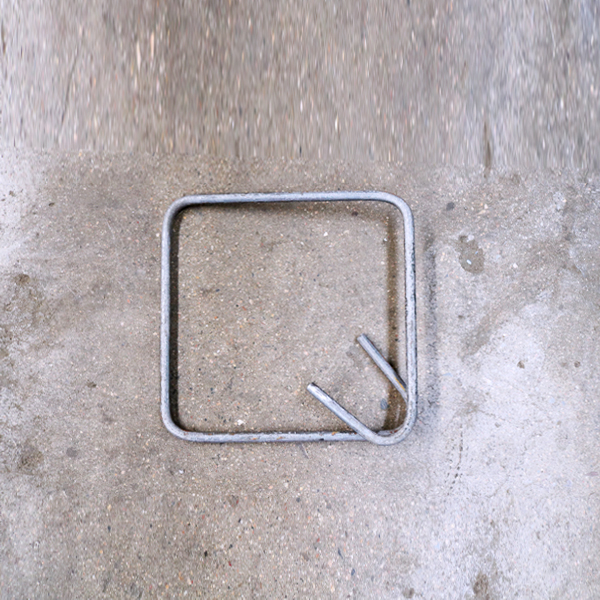

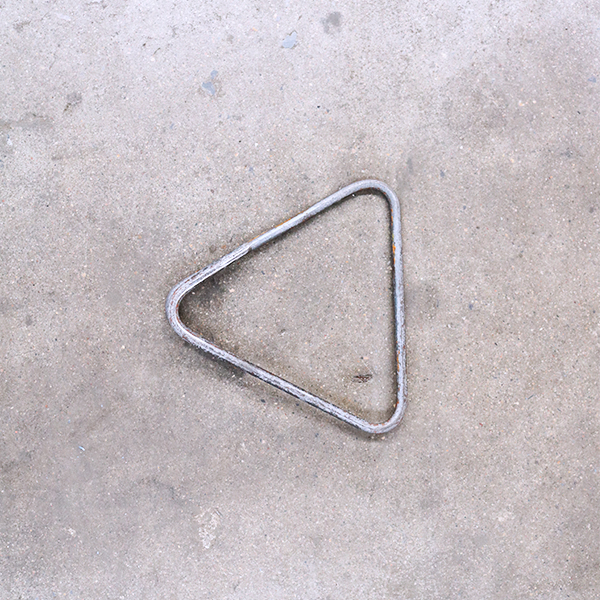

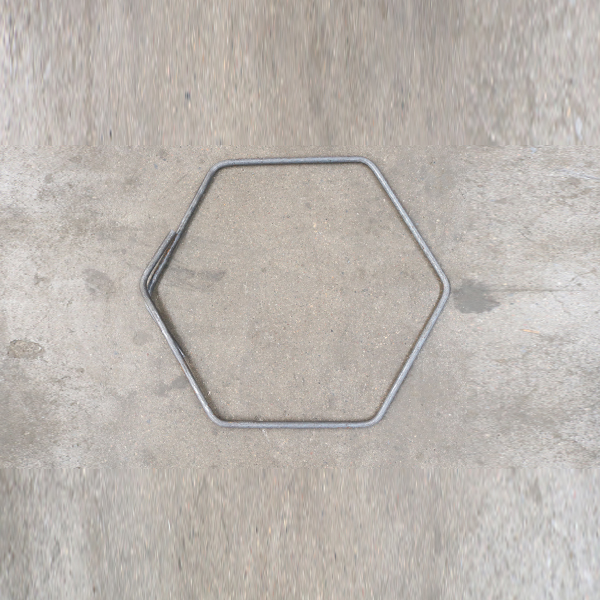

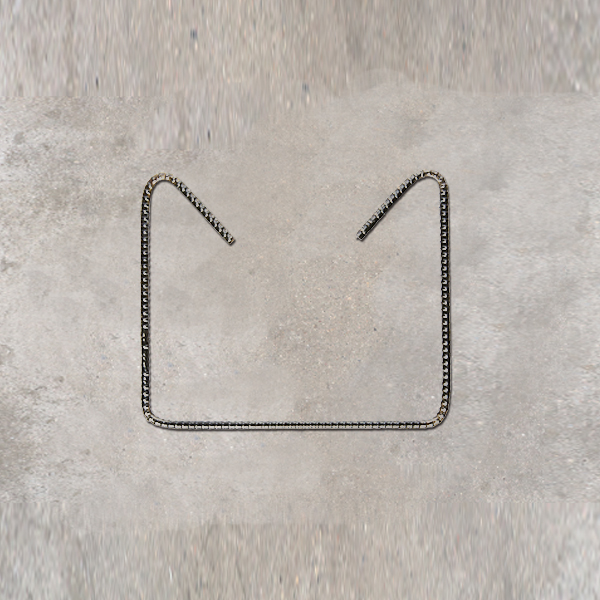

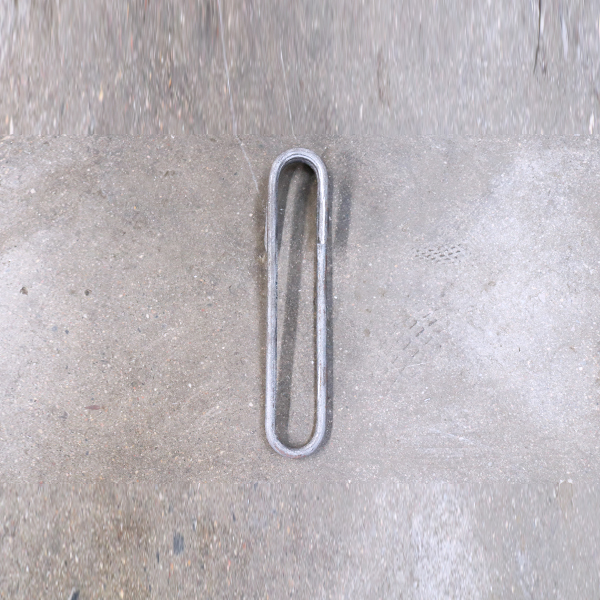

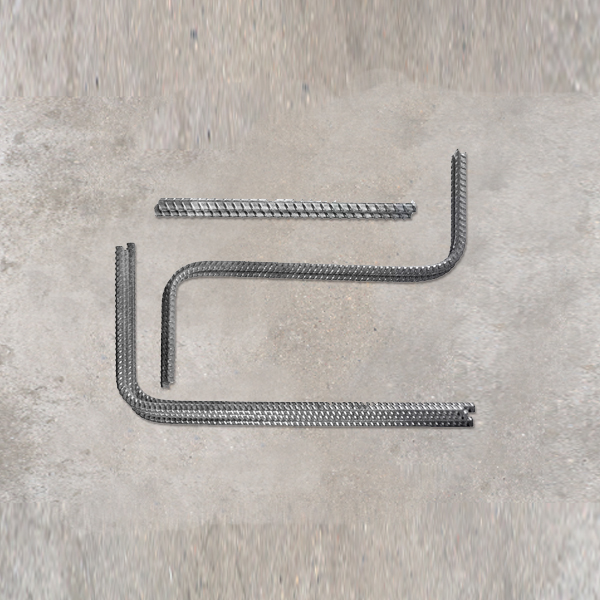

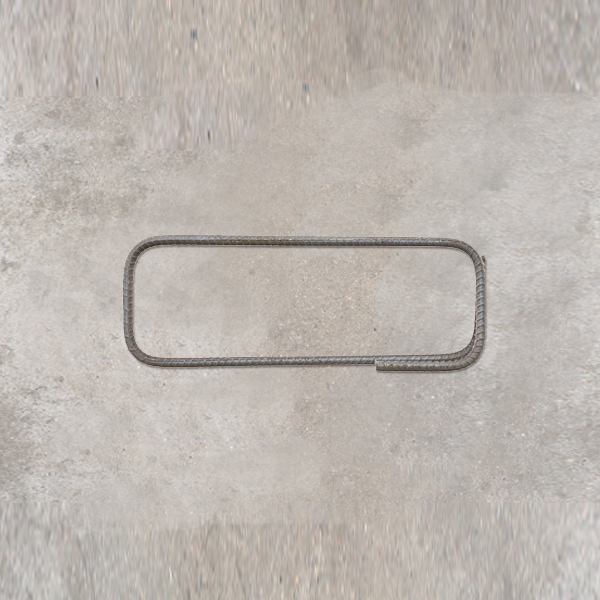

2021 Develop No.6 Automatic Stirrup Bending Machine-Stirrups

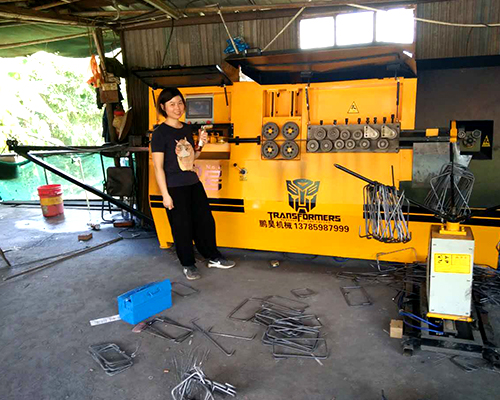

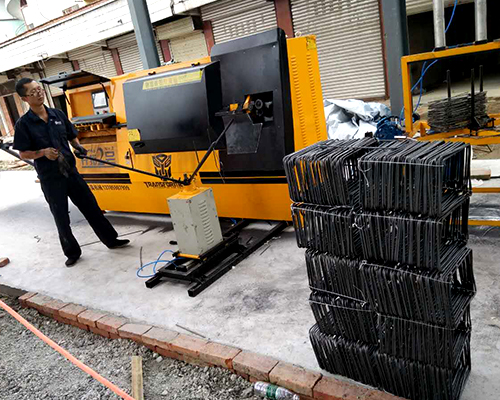

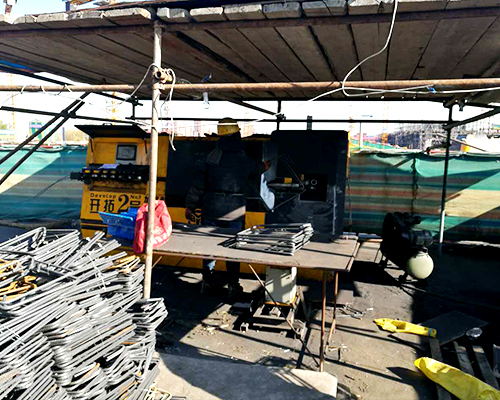

Phmtools Customers


Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.

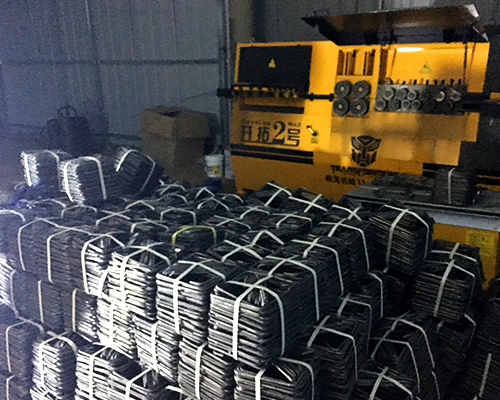

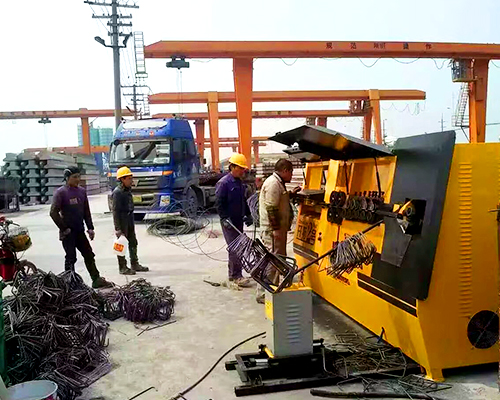

2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers
2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers Bender Ma
2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers
2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers
2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers
2021 Develop No.6 Automatic Stirrup Bending Machine-Phmtools Customers




After Service


1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
