Main Technical Parameter
Machine model | TJ-50-12 | PH-50-16 |
Range of wire diameter | Φ5.0-12mm soft wire Φ5.0-10mm hard wire | Φ5.0-16mm soft wire Φ5.0-12mm hard wire |
Number of wire feeding wheels | 1000mm | 1000mm |
Number of wire delivery groups | 4 | 4 |
Number of straightening wheels | 14个 | 14个 |
Wire feeding speed | 55米/Min | 45米/Min |
Turning angle | 0°-300° | 0°-300° |
Wire delivery accuracy | ± 0.1mm | ± 0.1mm |
Wire spool | 7.5KW | 7.5KW |
Rotating shaft | 4.5KW | 5.5KW |
Angled axis | 2.0KW | 3.0KW |
Lift shaft | 1.0KW | 1.0KW |
Cutting blade shaft | 1.8KW | 3.0KW |
Number of axes | Sanyo servo motor from Japan | Sanyo servo motor from Japan |
Connect voltage | 380V | 380V |
Internal operating voltage | 220V | 220V |
Host machine size (length * width * height) | 2900mm*1900mm*2100mm | 3200mm*1900mm*2100mm |
Machine weight | 3200KG | 3800KG |
Screw guide rail | Taiwan Shangyin | Taiwan Shangyin |

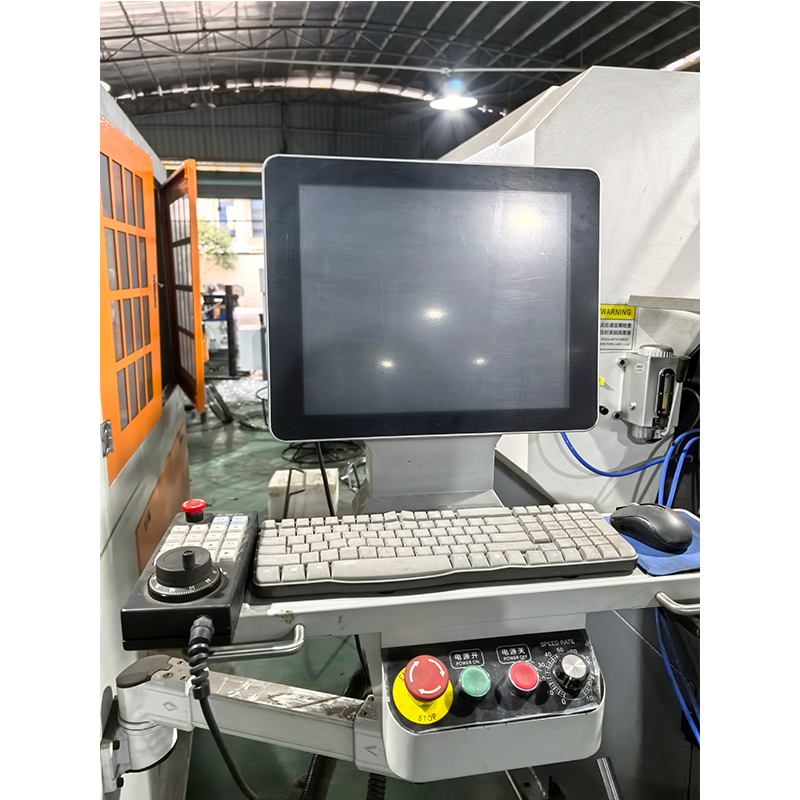

Composition of control system | Computer screen | Computer screen |
Numerical Control System Control Board | Numerical Control System Control Board | |
Format Editing | Format Editing | |
CNC wire forming dedicated system | CNC wire forming dedicated system | |
Standard equipment | ||
Wire feed wheel | 6PCS | 6PCS |
Bending head | 4PCS | 6PCS |
cutter | 1PCS | 1PCS |
Toolbox | 1PCS | 1PCS |

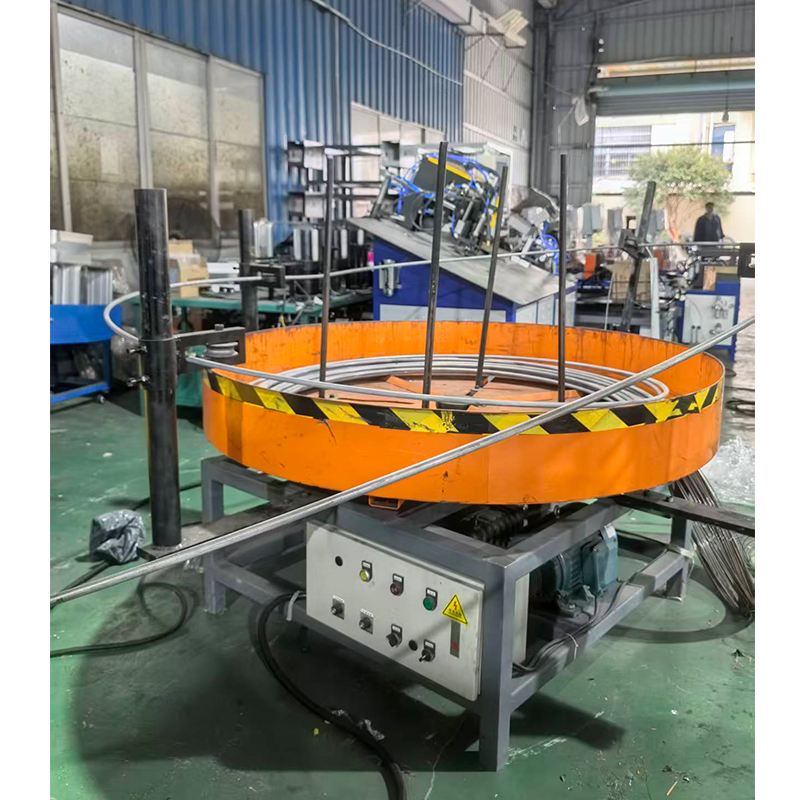

Selection | 500/1000/1500KG Power material rack | 500/1000/1500KG Power material rack |
After Service
Pre-sale Service
Inquiry and consulting support.
View our Factory.
After-sale Service
One year warranty for whole machine(not including wearing parts ),life-long maintenance and technical support.
Offering detailed instruction book for your reference.
Training how to instal the machine, training how to use the machine.
Why choose us ?
We are the manufacturer,good price for you .
We have professional sales staff to answer any questions you ask.Help you choose the most suitable models.
We have professional technicians.Solve any difficult problems about the operation of the machine for whole day.
