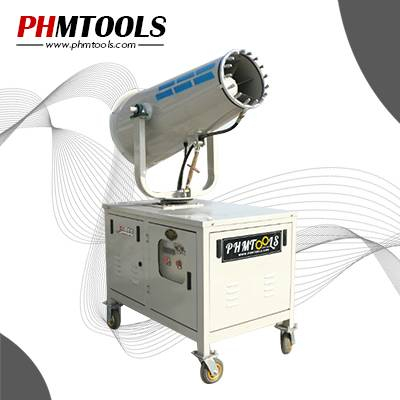

PHMTOOLS company main produce: Fog Cannon Gun
(Please contact us (click here) to get more product information)
Fog Cannon Gun Parameter
| Model | PH-30 | PH-40 | PH-50 | PH-60 | PH-80 |
| Horizontal Spray distance (m) | 30 | 40 | 50 | 60 | 80 |
| Horizontal move angle (degree) | 0~360 | 0~360 | 0~360 | 0~360 | 0~360 |
| Vertical move angle (degree) | -10~60 | -10~60 | -10~60 | -10~60 | -10~60 |
| Flow (t/h) | 2.5-3 | 3.5-4 | 4.5-5 | 5.5-6 | 7.5 |
| Protection level | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 | No less than IP55 |
| Power (kw) | 6 | 8.5 | 16.5 | 18.5 | 22 |
| Work temperature (degree) | —30~+45 | —30~+45 | —30~+45 | —30~+45 | —30~+45 |
| Control mode | Remote control,fully automatic | Remote control,fully automatic | Remote control,fully automatic | Remote control,fully automatic | Remote control,fully automatic |
| Size | 1400x700x1800mm | 1400x900x1800mm | 1500*1000*1900mm | 1600*1000*1900mm | 1750*1200*2500mm |
| Weight | 250kg | 250kg | 300kg | 400kg | 650kg |
Product parameters
1. Long-range, strong penetration, wide-coverage, fine water mist, more uniform spraying, fast dust reduction speed, and higher working efficiency;
2. PLC integrated intelligent control cabinet, which can achieve quantitative, timing, fixed-point spray;
3. The supporting power is flexible, which can be used with 380V mains power, or with the generator set;
4. It can be installed on the concrete platform or steel frame platform, and can also be installed on the vehicle;

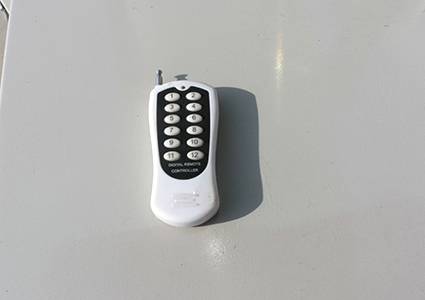

7. Precise control within 100 meters of the remote control;
6. Water-saving and energy saving, water consumption can save 70% ~ 80% compared with other dust suppression spray equipment (spray gun, sprinkler), and the water mist coverage area is much larger than other spray devices.
7. A solution box can be added for spraying pesticides and disinfectants. Used in agriculture and health.
Fog Cannon Gun product details

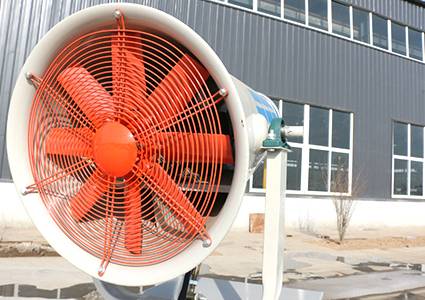

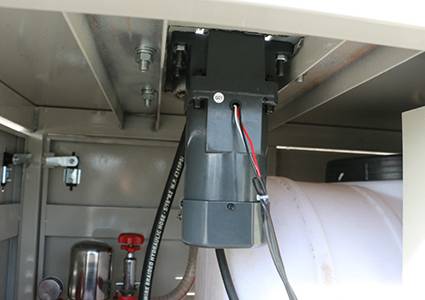

 Fog Cannon Gun details 1 |  Fog Cannon Gun details 2 |

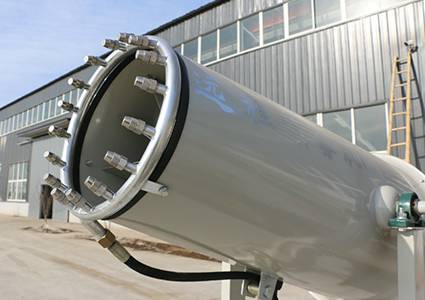

 Fog Cannon Gun details 3 |  Fog Cannon Gun details 4 |

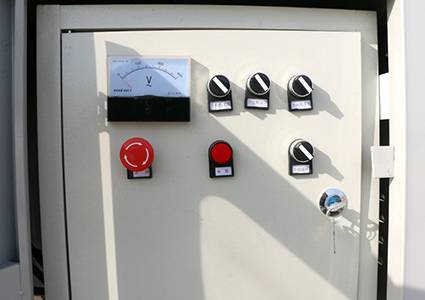

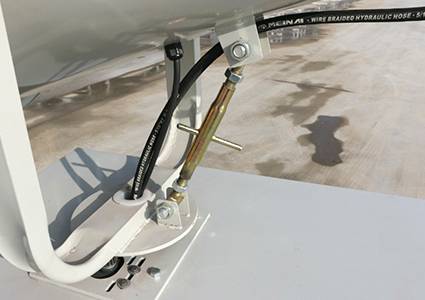

 Fog Cannon Gun details 5 |  Fog Cannon Gun details 6 |

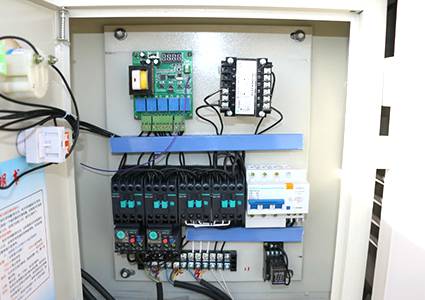

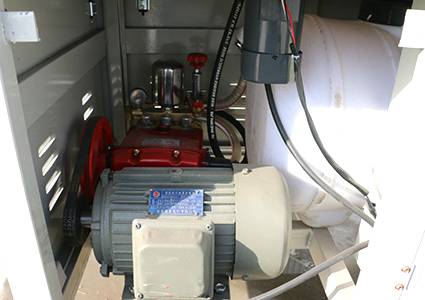

 Fog Cannon Gun details 7 |  Fog Cannon Gun details 8 |
 Fog Cannon Gun details 9 |  Fog Cannon Gun details 10 |
Fog Cannon Gun Product display

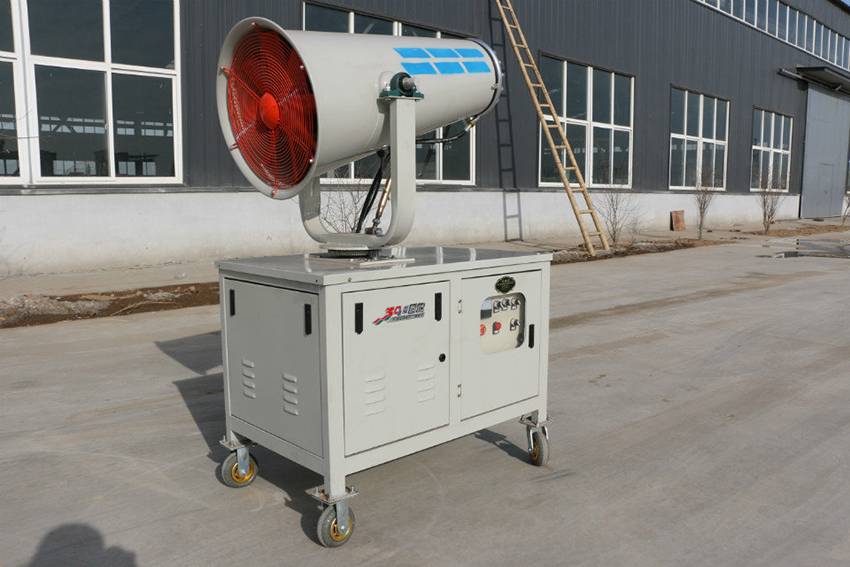

Fog Cannon Gun Product picture 1

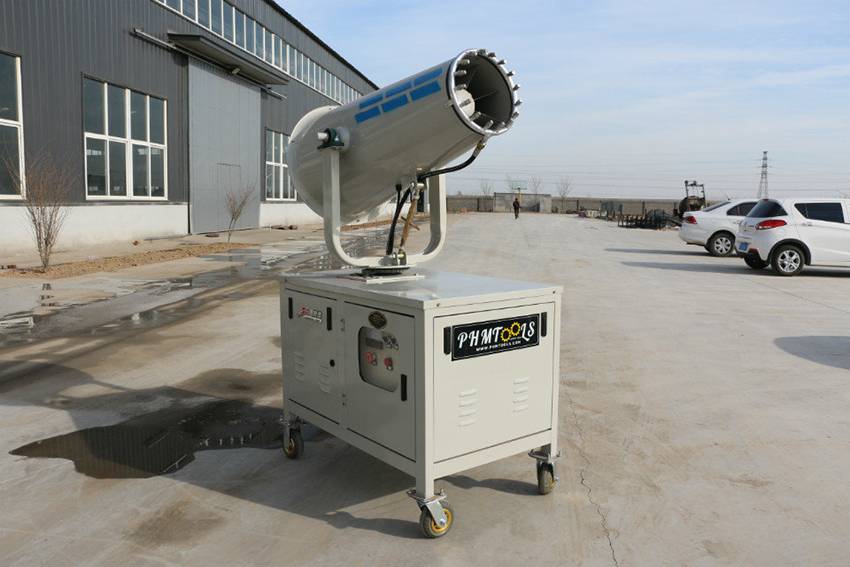

Fog Cannon Gun Product picture 2
Fog Cannon Gun Product picture 3

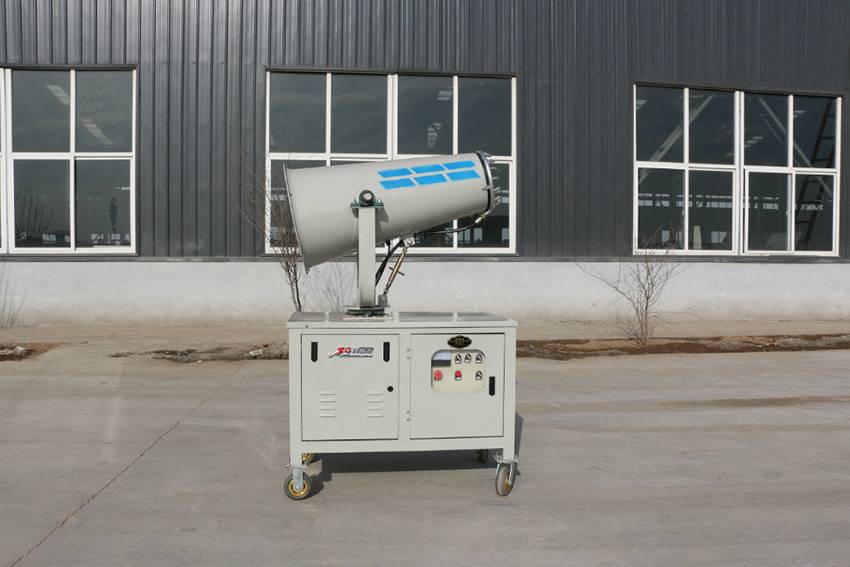

Fog Cannon Gun Product picture 4
Why choose Fog Cannon Gun ?
We are the manufacturer,good price for you .
We have professional sales staff to answer any questions you ask.Help you choose the most suitable models.
We have professional technicians.Solve any difficult problems about the operation of the machine for whole day.
We have joined the Trade Assurance on Alibaba .Ensure your financial security.
