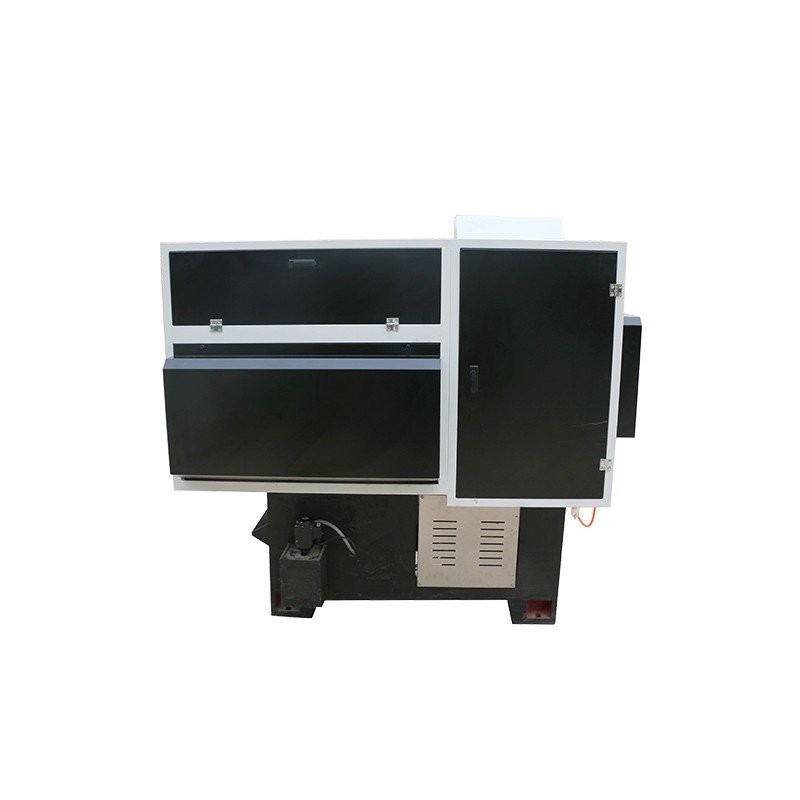

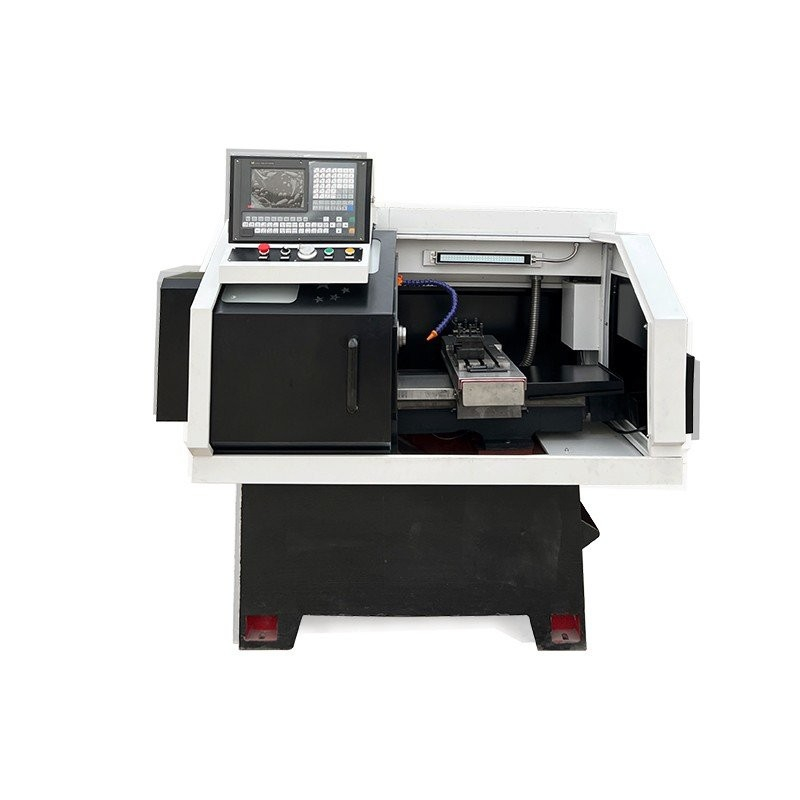

Mini lathe machine metal

1.CNC lathe machine is a high-precision, high-efficiency automatic machine tool.

2.Equipped with a multi-station turret or a power turret, the machine tool has a wide range of processing performance, and can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex workpieces.

3.with linear interpolation, arc Interpolate various compensation functions, and play a good economical effect in the mass production of complex parts
Availability:

Mini lathe machine metal (7)

Mini lathe machine metal (8)

Name Parameters
Lathe LK0640 split hard rail
Guide 260*840mm
Screw (Z direction) 3206*560
Screw X direction 2505*500
Transfer method Standard gearbox
Bed Rotation Diameter 350
Spindle through hole 48
Clamping device pneumatic
Spindle speed 50-3000
X-direction pulse 0.001MM
X travel 500MM
Movement speed in X direction 8000MM
Z travel 220MM
Z movement speed 8000MM
Z pulse 0.001MM
Main motor 4KW
Tool holder Row of knives
Machine net weight 900KG
System Guangshu 928TDL
Infinitely variable speed Neumann
