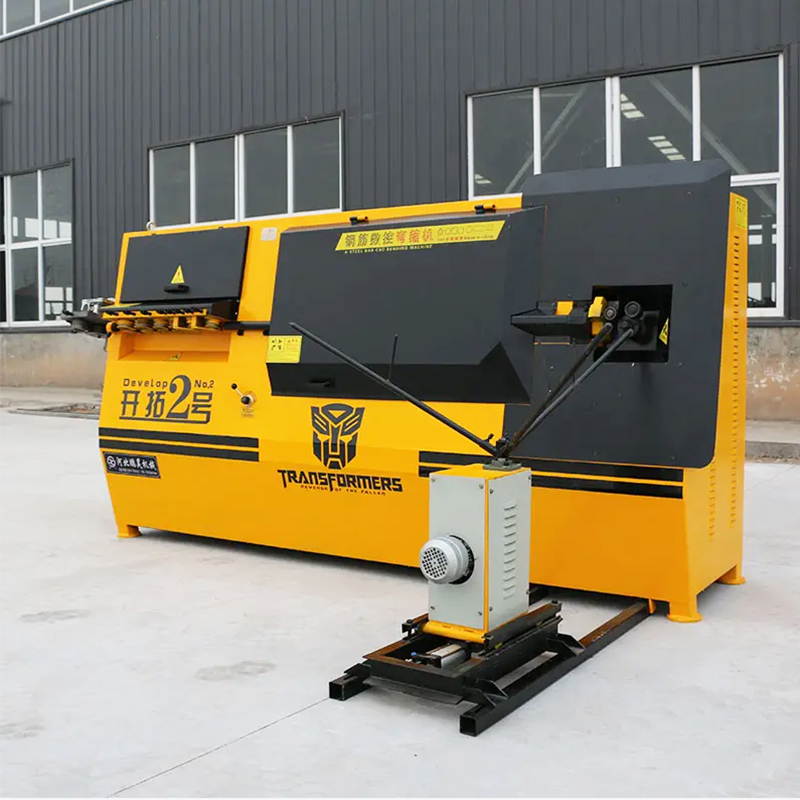

Rebar Fully Automatic Stirrup Bending Machine Rebar Fully Automatic Stirrup Bending Machine
Rebar Fully Automatic Stirrup Bending Machine Rebar Fully Automatic Stirrup Bending Machine
Rebar Fully Automatic Stirrup Bending Machine Rebar Fully Automatic Stirrup Bending Machine
Rebar Fully Automatic Stirrup Bending Machine Rebar Fully Automatic Stirrup Bending Machine
Rebar Fully Automatic Stirrup Bending Machine Rebar Fully Automatic Stirrup Bending Machine

loading

Rebar Fully Automatic Stirrup Bending Machine

Share to:
facebook sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
Rebar Fully Automatic Stirrup Bending Machine It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3280*1000*1700mm
  • Develop No.2

Availability:


Product Introduction


Develope No.2 Rebar stirrup bending machines is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.




Technical Specifications


Single wire(mm):

φ4-12mm round bar /4-10 rebar

Pieces Processed:

≤2

Double wire(mm):

φ4-8mm round bar /4-8 rebar

Power equipment:

17kw

Max bending angle:

±180°

Steel processing shape:

100types

Maximum towing speed:

60m/min

Working temperature:

-5℃~40℃

Maximum bending speed:

800°/sec

Total weight:

1350KG

Length accuracy:

±1mm

Size of Host Machine:

3280*1000*1700mm

Average power:

5kw/h

Device color:

customized

Maximum length  of stirrup side:

1100mm

Minimum length  of stirrup side:

50mm





Product Details


1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.


Rebar Fully Automatic Stirrup Bending Machine-CNC control display screen

CNC control display screen

Rebar Fully Automatic Stirrup Bending Machine-Straightening rollers

Straightening rollers

Rebar Fully Automatic Stirrup Bending Machine-Driver

Driver

Rebar Fully Automatic Stirrup Bending Machine-Towing Rollers

Towing Rollers

Rebar Fully Automatic Stirrup Bending Machine-Bending axis assembly

Bending axis assembly




Product Details


Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details

Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details
Rebar Fully Automatic Stirrup Bending Machine-Product Details


Rebar Fully Automatic Stirrup Bending Machine-Stirrups




Phmtools Customers


Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.



Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers
Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers
Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers
Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers
Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers
Rebar Fully Automatic Stirrup Bending Machine-Phmtools Customers




After Service


1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
