Stirrup Bending Machine Manufacturer in Taiwan Stirrup Bending Machine Manufacturer in Taiwan
Stirrup Bending Machine Manufacturer in Taiwan Stirrup Bending Machine Manufacturer in Taiwan
Stirrup Bending Machine Manufacturer in Taiwan Stirrup Bending Machine Manufacturer in Taiwan

loading

Stirrup Bending Machine Manufacturer in Taiwan

Share to:
facebook sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button

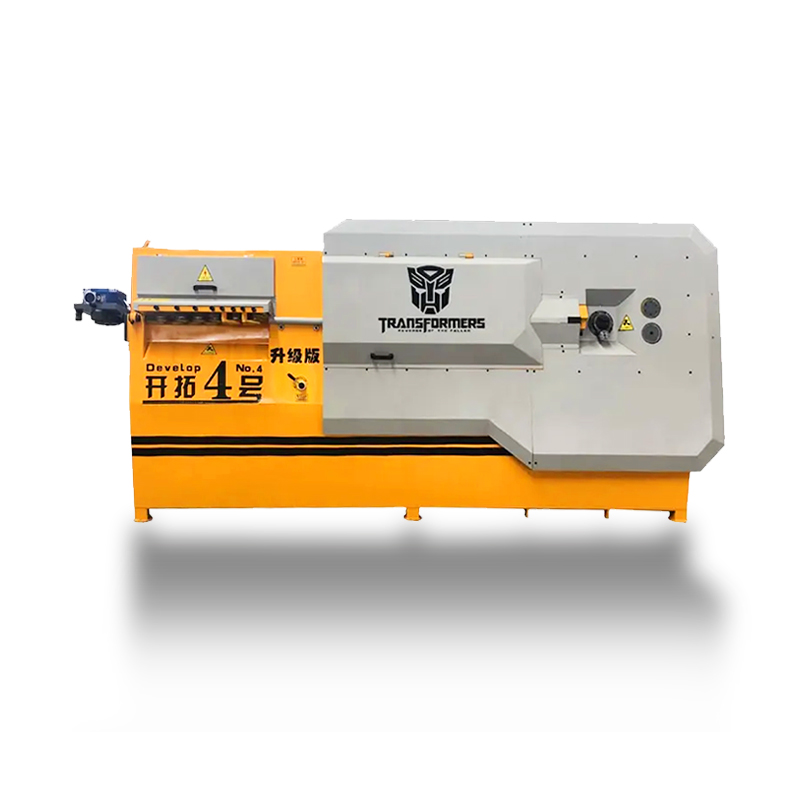

stirrup bending machine manufacturer in taiwan It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3500*1100*1700mm
  • Develop No.4

Availability:


Product Introduction


Automatic stirrup bending machine is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.




Technical Specifications


Single wire(mm):

φ4-12mm round bar /4-10 rebar

Pieces Processed:

≤2

Double wire(mm):

φ4-8mm round bar /4-8 rebar

Power equipment:

24kw

Max bending angle:

±180°

Steel processing shape:

500types

Maximum towing speed:

75m/min

Working temperature:

-5℃~40℃

Maximum bending speed:

1000°/sec

Total weight:

1500KG

Length accuracy:

±1mm

Size of Host Machine:

3500*1100*1700mm

Average power:

5kw/h

Device color:

customized

Maximum length  of stirrup side

1100mm

Minimum length  of stirrup side

50mm





Product Details


1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.




Stirrup Bending Machine Manufacturer in Taiwan-CNC control display screen

CNC control display screen

Stirrup Bending Machine Manufacturer in Taiwan-Straightening rollers

Straightening rollers

Stirrup Bending Machine Manufacturer in Taiwan-Driver

Driver

Stirrup Bending Machine Manufacturer in Taiwan-Towing Rollers

Towing Rollers

Stirrup Bending Machine Manufacturer in Taiwan-Bending axis assembly

Bending axis assembly




Product Details


Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details

Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details
Stirrup Bending Machine Manufacturer in Taiwan-Product Details


Stirrup Bending Machine Manufacturer in Taiwan-STIRRUPS




Phmtools Customers


Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.



Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers-6
Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers-4
Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers
Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers-3
Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers-5
Stirrup Bending Machine Manufacturer in Taiwan-Phmtools Customers-1




After Service


1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
