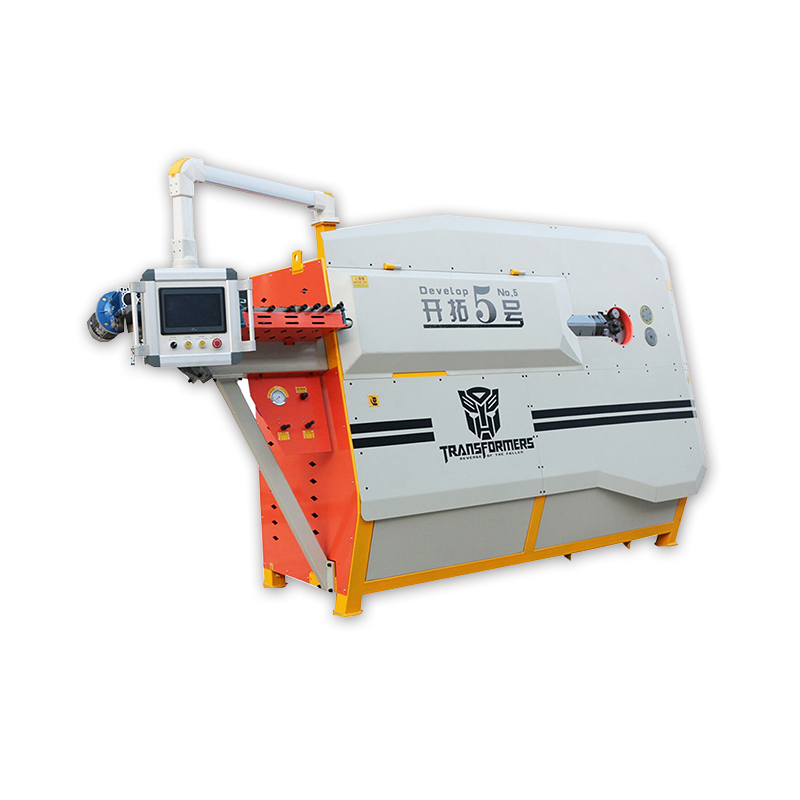

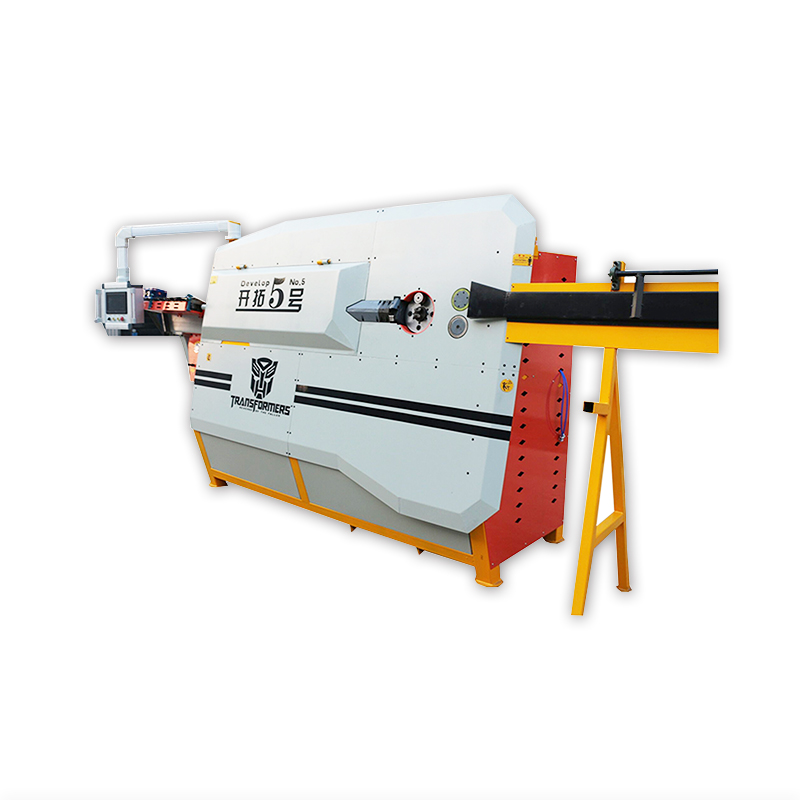

stirrup bending machine price It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3560*1080*2030mm
  • Develop No.5

Availability:


Product Introduction


2023 latest Automatic Stirrup Bending Machine is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.




Technical Specifications


Single wire(mm): φ5-14mm round bar /5-14 rebar Pieces Processed: ≤2
Double wire(mm): φ5-10mm round bar /5-10 rebar Power equipment: 30.5kw
Max bending angle: ±180° Steel processing shape: 500types
Maximum towing speed: 75m/min Working temperature: -5℃~40℃
Maximum bending speed: 1000°/sec Total weight: 2450KG
Length accuracy: ±1mm Size of Host Machine: 3560*1080*2030mm
Average power: 5kw/h Device color: customized
Maximum length  of stirrup side 1500mm Minimum length  of stirrup side 50mm





Product Details


1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.


Stirrup Bending Machine Price-Product Details-2
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details




Product Details


Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details

Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details
Stirrup Bending Machine Price-Product Details


Stirrup Bending Machine Price-STIRRUPS




Phmtools Customers


Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.



Stirrup Bending Machine Price-Phmtools Customers-6
Stirrup Bending Machine Price-Phmtools Customers-4
Stirrup Bending Machine Price-Phmtools Customers
Stirrup Bending Machine Price-Phmtools Customers-3
Stirrup Bending Machine Price-Phmtools Customers-5
Stirrup Bending Machine Price-Phmtools Customers-1




After Service


1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
