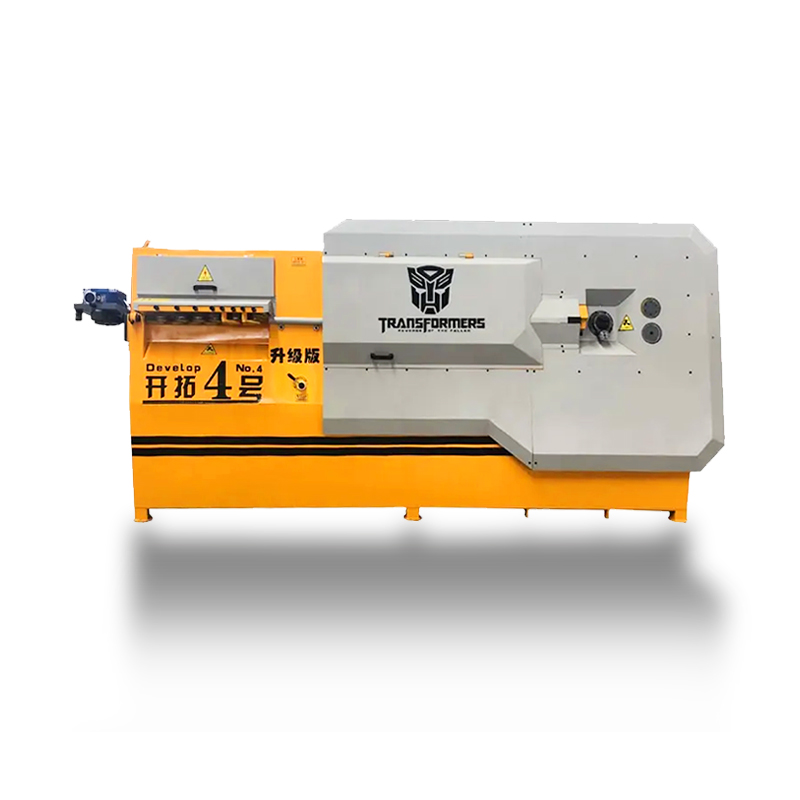

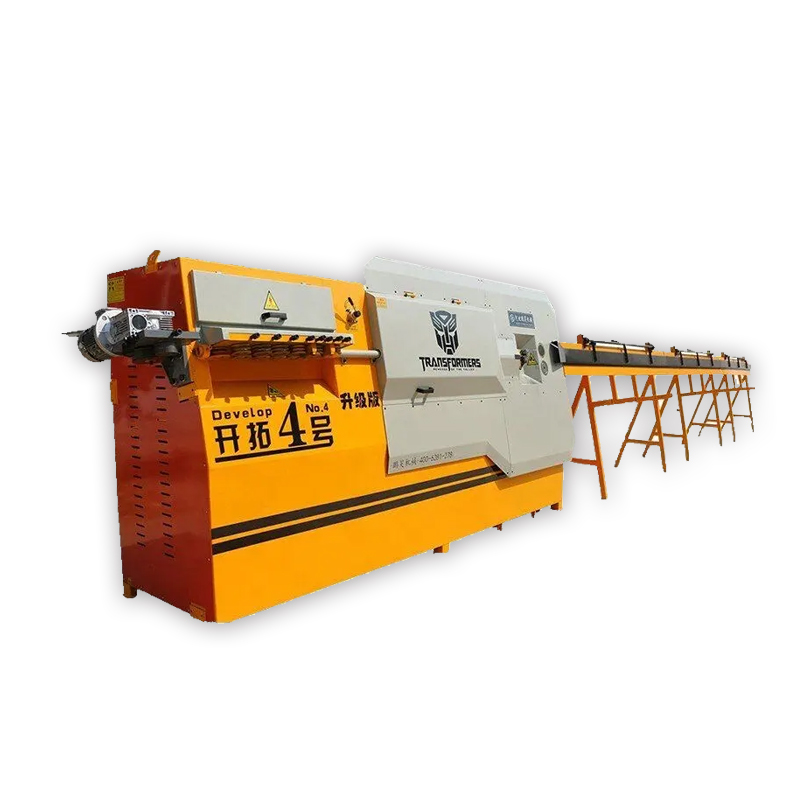

stirrups bending machine It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3500*1100*1700mm
  • Develop No.4

Availability:


Product Introduction


Automatic stirrup bending machine is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.




Technical Specifications


Single wire(mm):

φ4-12mm round bar /4-10 rebar

Pieces Processed:

≤2

Double wire(mm):

φ4-8mm round bar /4-8 rebar

Power equipment:

24kw

Max bending angle:

±180°

Steel processing shape:

500types

Maximum towing speed:

75m/min

Working temperature:

-5℃~40℃

Maximum bending speed:

1000°/sec

Total weight:

1500KG

Length accuracy:

±1mm

Size of Host Machine:

3500*1100*1700mm

Average power:

5kw/h

Device color:

customized

Maximum length  of stirrup side

1100mm

Minimum length  of stirrup side

50mm





Product Details


1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.




Stirrups Bending Machine-CNC control display screen

CNC control display screen

Stirrups Bending Machine-Straightening rollers

Straightening rollers

Stirrups Bending Machine-Driver

Driver

Stirrups Bending Machine-Towing Rollers

Towing Rollers

Stirrups Bending Machine-Bending axis assembly

Bending axis assembly




Product Details


Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details

Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details
Stirrups Bending Machine-Product Details


Stirrups Bending Machine-STIRRUPS




Phmtools Customers


Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.



Stirrups Bending Machine-Phmtools Customers-6
Stirrups Bending Machine-Phmtools Customers-4
Stirrups Bending Machine-Phmtools Customers
Stirrups Bending Machine-Phmtools Customers-3
Stirrups Bending Machine-Phmtools Customers-5
Stirrups Bending Machine-Phmtools Customers-1




After Service


1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
