What's the Difference Between Single-Wire and Double-Wire Automatic Stirrup Benders? Application Scenarios Explained

As the construction industry moves toward higher efficiency and automation, automatic stirrup benders have become essential equipment in steel bar processing. Among them, single-wire and double-wire stirrup benders are two of the most common types—but what exactly sets them apart? And more importantly, which machine is best suited for your production needs?

In this article, we explore the core differences between single-wire and double-wire stirrup benders, and provide practical recommendations for their application in different jobsite or factory environments.


1. What Is a Single-Wire Stirrup Bender?

A single-wire automatic stirrup bender feeds and processes one steel wire at a time, typically ranging from 5 mm to 13 mm in diameter. It is ideal for standard rebar processing with lower to medium daily output requirements.

Key Features:

  • Processes 1 wire at a time

  • Simpler structure, lower maintenance

  • More precise bending on small radius shapes

  • More economical for small to medium workshops

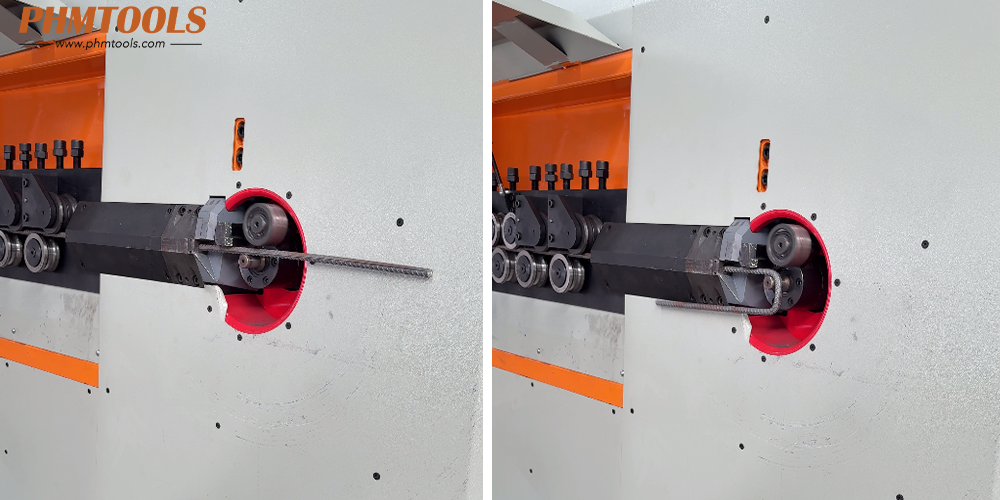

Whats the Difference Between Single-Wire and Double-Wire Automatic Stirrup Benders2


2. What Is a Double-Wire Stirrup Bender?

A double-wire stirrup bender feeds and bends two wires simultaneously, effectively doubling the productivity. These machines can handle wire diameters up to 12 mm × 2 wires and are suitable for large-scale construction or prefab plants.

Key Features:

  • Processes 2 wires at once

  • Up to 2× output efficiency

  • Slightly larger footprint and power consumption

  • Requires more precise synchronization and calibration

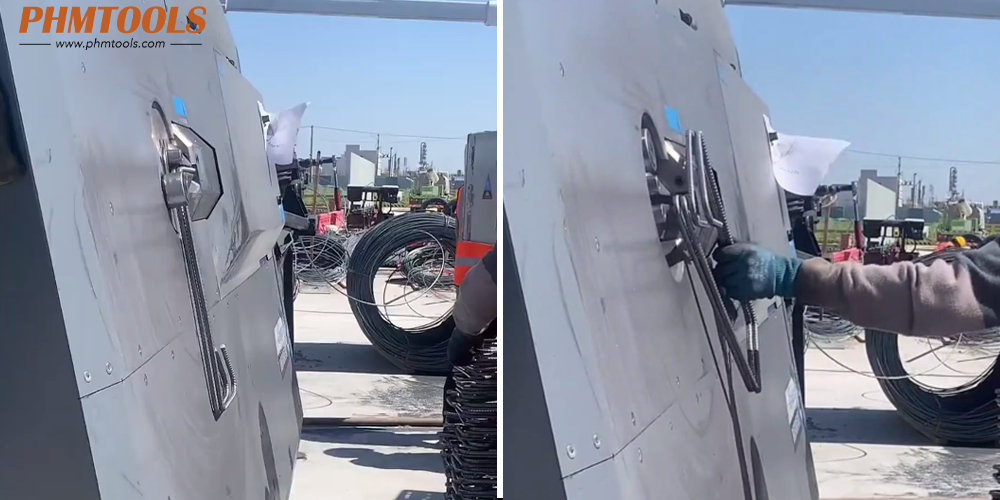

Whats the Difference Between Single-Wire and Double-Wire Automatic Stirrup Benders


3. Comparison Table: Single-Wire vs. Double-Wire

Feature Single-Wire Bender Double-Wire Bender
Output Efficiency Standard High (2x productivity)
Wire Size Range 5–13 mm 5–12 mm (x2 wires)
Shape Accuracy Higher for small shapes Good for high-volume shapes
Maintenance Complexity Low Medium
Ideal Users Small-medium workshops Large factories, prefab yards
Cost Lower Higher upfront investment

4. Which Machine Fits Which Scenario?

✅ Choose a Single-Wire Bender if:

  • Your production volume is below 5 tons/day

  • You focus on custom-shaped stirrups or multiple shape types

  • Your workshop space is limited

  • You want a lower-cost machine with easy maintenance

Whats the Difference Between Single-Wire and Double-Wire Automatic Stirrup Benders1

✅ Choose a Double-Wire Bender if:

  • You process large quantities of standard stirrups

  • Your daily output target is 5–10+ tons

  • You operate a prefabricated building factory or rebar processing plant

  • Labor cost is high, and efficiency is a top priority


5. PHMTOOLS: One Supplier, Multiple Solutions

At PHMTOOLS, we offer both single-wire and double-wire automatic stirrup benders, designed for various production scales and budgets. All our machines feature:

  • Intelligent CNC controls with angle and length precision

  • Heavy-duty feeding rollers for stable performance

  • Customizable configurations for different markets

  • Local technical support and fast spare parts delivery

Our team is happy to help you choose the right model based on your project scale, rebar type, and efficiency goals.

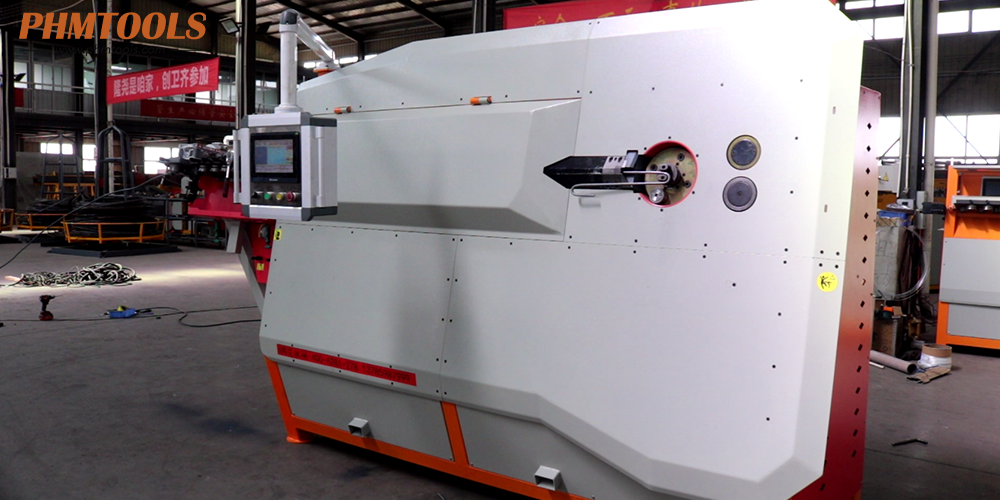

Whats the Difference Between Single-Wire and Double-Wire Automatic Stirrup Benders3


Conclusion

Choosing between a single-wire and a double-wire stirrup bender is not just a technical decision—it's a strategic investment in your factory or project’s productivity. By understanding the differences and matching them to your real needs, you can maximize return on investment, reduce labor dependency, and deliver high-quality stirrups at scale.

If you're unsure which stirrup bender suits your business best, contact PHMTOOLS today for a personalized consultation!
