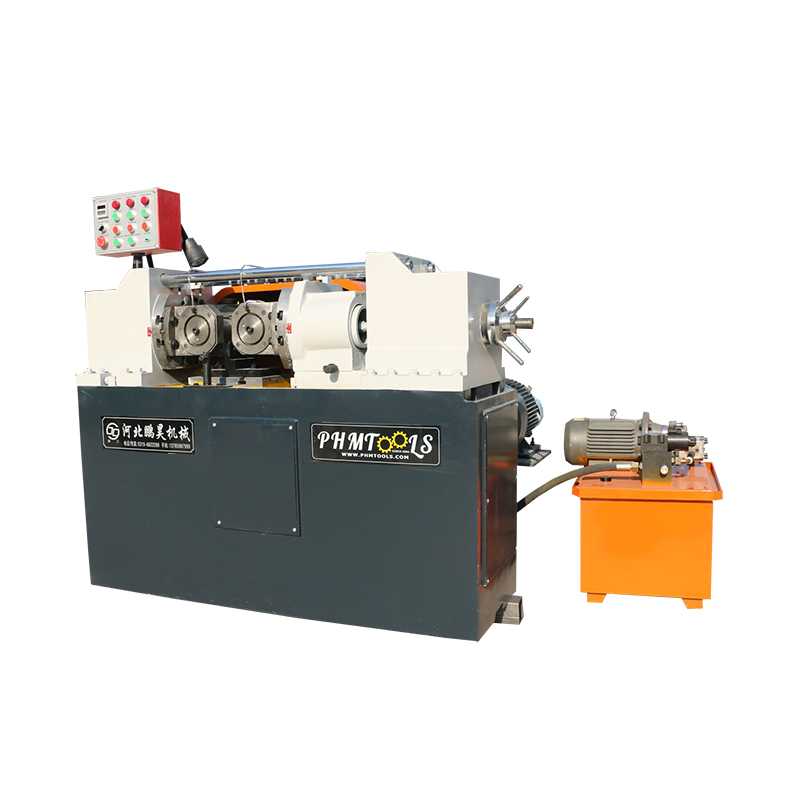

Z28-185 Hydraulic thread rolling machine

Share to:
facebook sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
Z28-185 Hydraulic thread rolling machineUsed for making thread on bolts,screws,fasteners,threaded rods
Can be designed with antomatic feeding device
Control panel easy to operate simple and convenient

Brand : PHMTOOLS
Size of Host Machine : 1790*1620*1425mm
Availability:


Product Introduction


Used for making thread on bolts,screws,fasteners,threaded rods

Diameter range: 6mm-65mm

Length of thead: unlimited

Can be designed with antomatic feeding device





Technical Specifications


MODEL   Z28-185 THREAD ROLLING MACHINE

Description

Parameters

Rolling diameter

6-65mm

Max width of rolling die

150mm

Max outer diameter of rolling die

220mm

Range of Center distance of die-spindle

160-280mm

Pitch size range(ordinary )

1-8mm

Max pitch size (Trapezoidal )

8mm

Motor

Rolling

11kw

Hydraulic

2.2kw

Cooling

0.12kw

Max rolling force

200KN

Diameter of spindle

75mm

Tilt angle of spindle

±15°

Speed of spindle

20/25/31/41/51/64(r/min)

Size of host machine

1790*1620*1425mm

Weight of machine

2200kg

Workpiece length

Unlimited





Product Details


  • Control panel easy to operate simple and convenient

  • Support seat putting thread rollers

  • Main spindel high tensile performance

  • Oil station storage hydraulic oil



Z28-185 Hydraulic thread rolling machine-Control Panel

Control Panel

Z28-185 Hydraulic thread rolling machine-Drive Shaft System

Drive Shaft System

Z28-185 Hydraulic thread rolling machine-Drive Shaft System

Drive Shaft System

Z28-185 Hydraulic thread rolling machine-Pure Copper Motor

Pure Copper Motor

Z28-185 Hydraulic thread rolling machine-Relief Valve

Relief Valve




Product Details


Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details
Z28-185 Hydraulic thread rolling machine-Product Details


Customized Bolts Such As Rolled Vertical Thread And Wheat Ear Pattern Can Be Made




After Service


Pre-sale Service

Inquiry and consulting support.

View our Factory.


After-sale Service

One year warranty for whole machine(not including wearing parts ),life-long maintenance and technical support.

Offering detailed instruction book for your reference.

Training how to instal the machine, training how to use the machine.


Why choose us ?

We are the manufacturer,good price for you .

We have professional sales staff to answer any questions you ask.Help you choose the most suitable models.

We have professional technicians.Solve any difficult problems about the operation of the machine for whole day.
