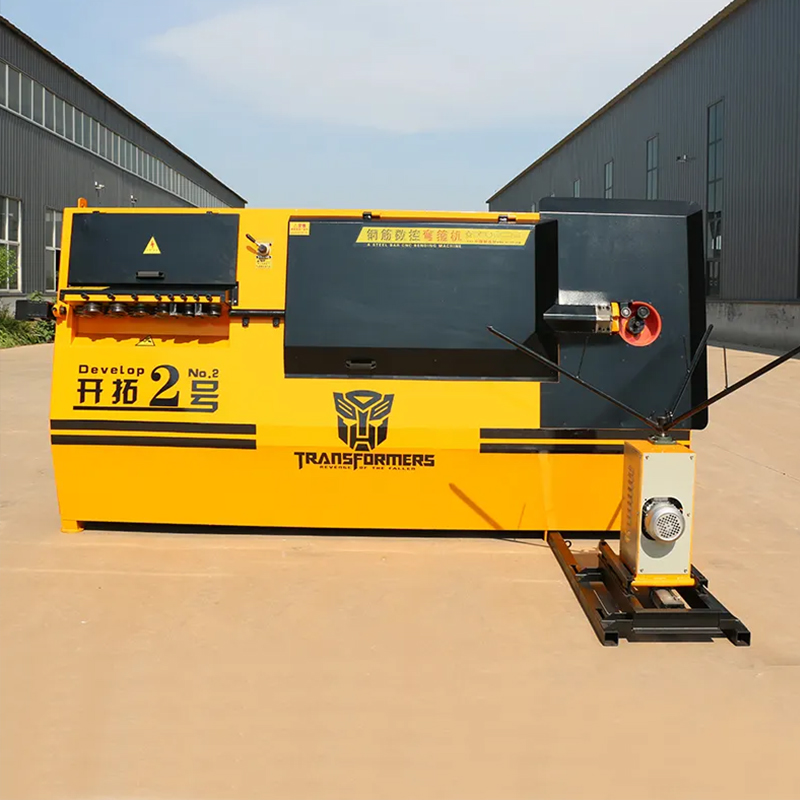

Automatic Rebar Bender Machine

Stirrup bar bending machine is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc.

Brand : PHMTOOLS
Size of Host Machine : 3280*1000*1700mm
  • Develop No.2
Availability:



Automatic Rebar Bender Machine - PHMTOOLS

Develope No.2 Rebar stirrup bending machines is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.


Single wire(mm):

φ4-12mm round bar /4-10 rebar

Pieces Processed

≤2

Double wire(mm):

φ4-8mm round bar /4-8 rebar

Power equipment

17kw

Max bending angle:

±180°

Steel processing shape:

100types

Maximum towing speed:

60m/min

Working temperature:

-5℃~40℃

Maximum bending speed

800°/sec

Total weight

1350KG

Length accuracy

±1mm

Size of Host Machine

3280*1000*1700mm

Average power

5kw/h

Device color

customized

Maximum length  of stirrup side

1100mm

Minimum length  of stirrup side

50mm

Automatic Rebar Bender Machine - PHMTOOLSAutomatic Rebar Bender Machine - PHMTOOLS


  • 1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.

  • 2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.

  • 3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.

  • 4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.

  • 5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.

Automatic Rebar Bender Machine - PHMTOOLS

After Service

1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge.

4.Send you the easy broken part of rebar stirrup bending machine for free.
