Mechanism Description of CNC Bending Machine

Views: 3     Author: Site Editor     Publish Time: 2022-12-05      Origin: Site


1. Bending And Forming Mechanism

This station is mainly responsible for the forming of stirrups. Bending the delivered steel bar into the shape we set. The power source of this station is a servo motor. It can bend the steel bars in both directions, and can freely control the expansion and contraction of the mandrel, and the size of the mandrel can be changed up and down.


2. Quick Shear Mechanism

This station is mainly responsible for the shearing action after the steel bar is formed. It consists of a motor and a pneumatic brake clutch. The cutting action is completed instantaneously after the cutting signal is obtained. The action is convenient and quick.


3. Vertical Straightening Mechanism

This station is mainly to adjust the straightness of the vertical direction of the steel bar. What adopted is the straightening method of roller type. Just adjust the depth of each set of rollers, you can easily straighten the vertical direction of the reinforcement.


4. Automatic Feeding Mechanism

This station is mainly responsible for the wire feeding action of steel bars in the process of bending hoops. The two sets of rollers are driven by the servo motor to complete the wire feeding action. Action is accurate and quick.


5. Horizontal Straightening Mechanism

This station is mainly to adjust the horizontal straightness of steel bars. The mechanism is equipped with an automatic feeding device, and the cylinder is used to press the forward and backward of the roller. The active roller is driven by a motor, and the function of the motor drives the feeding of the steel bar.


6. Pay-off Frame

The function of the pay-off rack is to store the wire to be processed. Divided into two types: standard type and increased type:

Standard type: The total height of the pay-off frame is 1600MM, the center diameter is 400MM, the maximum outer circle is 1600MM, and the maximum storage capacity is 500 kg of wire.


7. Machine Console

The console of this machine is composed of a dedicated CNC system and push button switches. The CNC system has the function of automatically generating graphics, counting and other functions. The graphical operation interface is more intuitive, humanized and easy to operate. Automatic fault identification and alarm function can make you maintain equipment more conveniently and quickly. The size of this console is L900*T400*W800.


8. Optional Parts

Voltage stabilization system: This system is mainly designed for some areas with unstable voltage. After installing this system, the applicable voltage range of this machine is 300V~450V.

High hardness roller set: SKD11 roller. Quenched and tempered heat treatment HRC60º±2º.

Heavy-duty pay-off rack: The total height of the pay-off rack is 2400MM, the center diameter is 600MM, and the maximum outer circle is 1600MM.

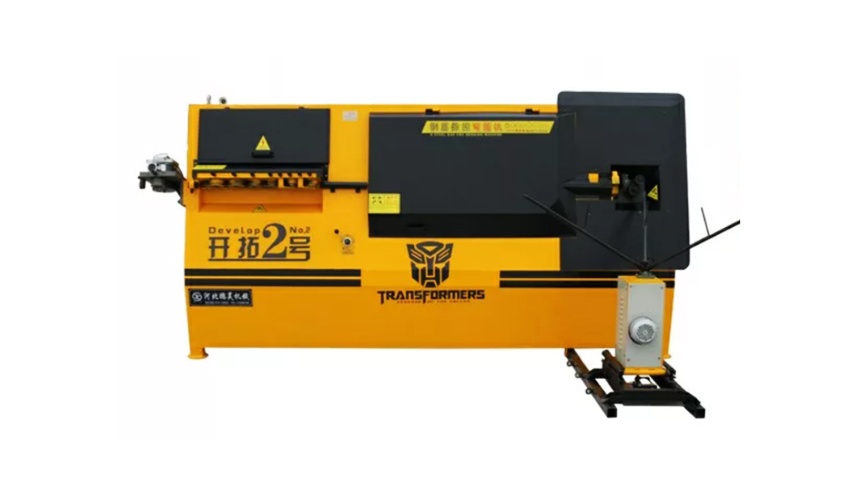

Mechanism Description of CNC Bending Machine (1)
