Develope No.3
Availability: | |
---|---|
Product Introduction

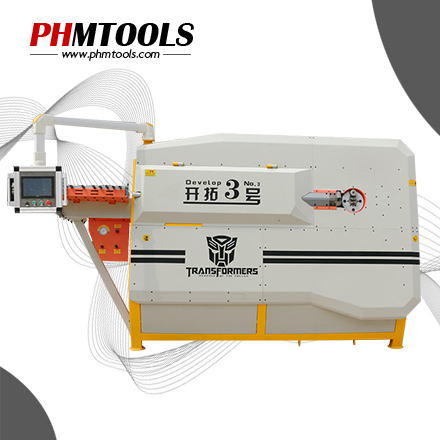

Develope No.3 Automatic stirrup bending machine is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our PHMTOOLS Automatic stirrup bending machine for sale is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.
Technical Specifications
Single wire(mm): | φ5-14mm round bar /5-14 rebar | Pieces Processed: | ≤2 |
Double wire(mm): | φ5-10mm round bar /5-10 rebar | Power equipment: | 28.5kw |
Max bending angle: | ±180° | Steel processing shape: | 500types |
Maximum towing speed: | 75m/min | Working temperature: | -5℃~40℃ |
Maximum bending speed:: | 1000°/sec | Total weight: | 2200KG |
Length accuracy: | ±1mm | Size of Host Machine: | 3560*1080*2030mm |
Average power: | 5kw/h | Device color: | customized |
Maximum length of stirrup side: | 1500mm | Minimum length of stirrup side: | 50mm |
Product Details
1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not injury.
2. Curve reinforcing bar staightening mechanism improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.
3. Vertical straightening mechanism, each steel bar can be individually straightened to ensure the straightening quality of the steel bar.
4. All roller are made of high quality alloy steel, high hardness, good wear resistance, improved service life.
5. Close to the corner of the steel molding machine to control the steel bar, in order to ensure the quality of bending.
Straightening Rollers
Traction Regulator
CNC Control Display Screen
Product side
Product Details
Phmtools Customers
Plant products have been all over the country and sold to Southeast Asia, South Asia, Europe, North Africa the Middle East and other overseas markets. And has won the majority of customers.
After Service
1.Guarantee for a year.
2.Quality problem,we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge.
4.Send you the easy broken part of rebar stirrup bending machine for free.
